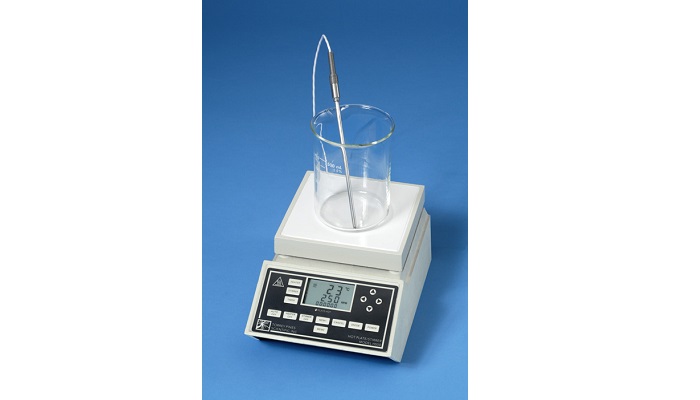

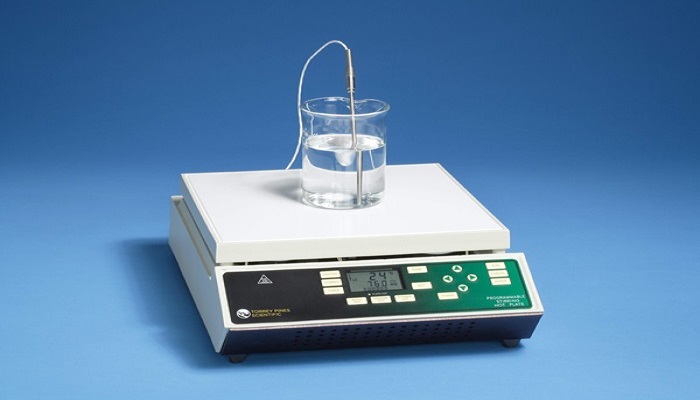

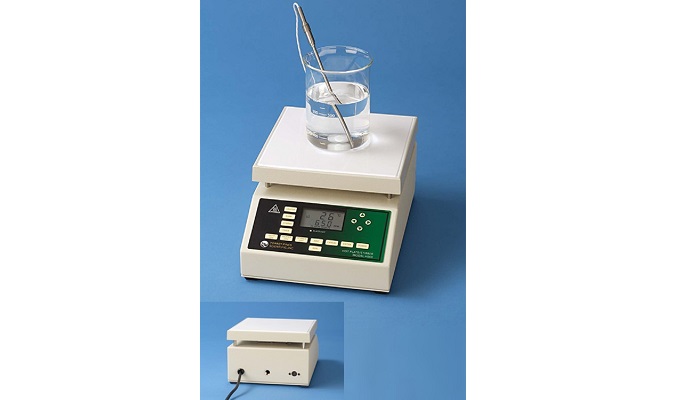

Digital Hot Plates and Stirring Hot Plates

Send enquiry

65 6767 2929

Overview
Specifications

When you cannot be in two places at once, these equipment are ideal for complete walk-away heating and stirring applications.

HP in model number = hot plate
HS in model number = stirring hot plate

10-program memory stored in CMOS. No batteries required
Each program can be 10 steps, where each step includes a temperature, stirring speed, time and heating rate
Repeat any program 1–98 times automatically. Infinite repeats settable
Programmable and non-programmable operation
Platinum RTD temperature measurement for ±1% accuracy
Solid ceramic heater top for quick heating on a flat, white, chemically resistant surface
Milled-flat cast aluminum top available for use with solids on the plate surface (HP40A and HS40A)
Temperature ramping for exact heating and cooling rates
PID temperature control to 1°C on plate surface or solution with accessory probe
Stir up to 2 liters of aqueous solutions from 100–1500 rpm (HS40 and HS40A)
Timer goes up to 99 hours, 59 minutes, 59 seconds with user settable Auto-Off
Electronic calibration stored in CMOS
RS232 interface for control or recording data on a computer
Custom display of all parameters all the time
12-month warranty
UL, CSA and CE compliant
